Art. No. 1423652


Smart paper roll dispenser with automatic paper cutting for single sheets

  • Stainless steel
Paper Type
  • Paper roll, with outer winding, max. roll width 190-210 mm, max. roll diameter 210 mm
Smart Technology
  • Description
  • Documents
  • Technical Drawings
  • Spare parts

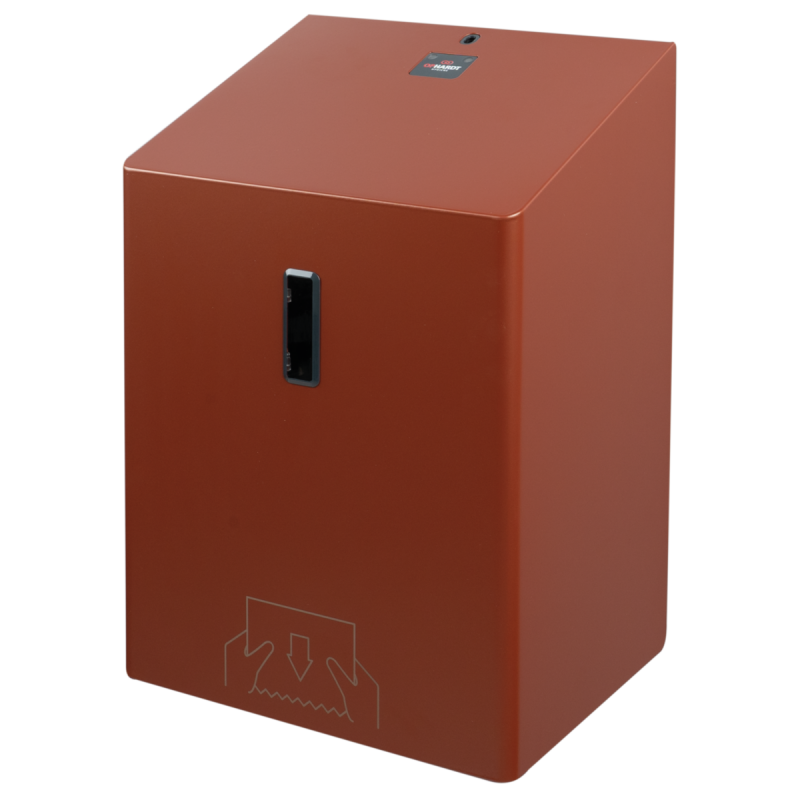

SanTRAL® Plus ACU 1 P Copper Rose (CR) SMART, Autocut dispenser for roll paper towels, stainless steel, copper-metallic powder coated, with automatic cutting producing single-sheets when paper pulled downwards, for towel paper rolls without perforation up to 210 mm diameter, with emergency operating lever, lockable, with fill level window, sloped-top housing prevents placement of unwanted objects on dispenser

Data transmission via WiFi with visualization by KANARY or third party platforms, for fully automatic detection of the fill level via sensor technology, integrated LEDs to indicate a critical battery and fill level, over-the-air configuration and firmware update, NFC to read out data and to configure via smartphone.

CE certification:EN 300328 Integration verification WLAN, EN 300330 Integration verification NFC, ETSI EN 62311.2008 EMF, ETSI EN 301489-1 EMV
Electronic:Board with sensors, WiFi module 802.11 b/g/n (Frequency range: 2400 MHz - 2483.5 MHz; WPA and WPA2) and NFC Chip (Frequency: 13.56 MHz)
Firmware:Updates and configuration “over-the-air” (OTA)
Housing:Stainless steel, copper-metallic powder-coated
Mounting:Wall mounting with 4 screws and wall plugs
Software:Dispenser with integrated Smart Module enables automatic fill level detection and connection to KANARY as well as third-party platforms
Voltage:6 Volt
Warranty:5 years
Product Sub-Categories:Autocut paper roll towel dispenser
Filling Volume (Sheet):1 Paper roll
Paper Type:Paper roll, with outer winding, max. roll width 190-210 mm, max. roll diameter 210 mm
Cleaning Method:manual wipe disinfection
Material:Stainless steel
Smart Technology:Smart
