TTU 2 P CR SMART

Intelligent toilet paper dispenser with ergonomic toilet paper dispensing

Description
Documents
Technical Drawings
Spare parts

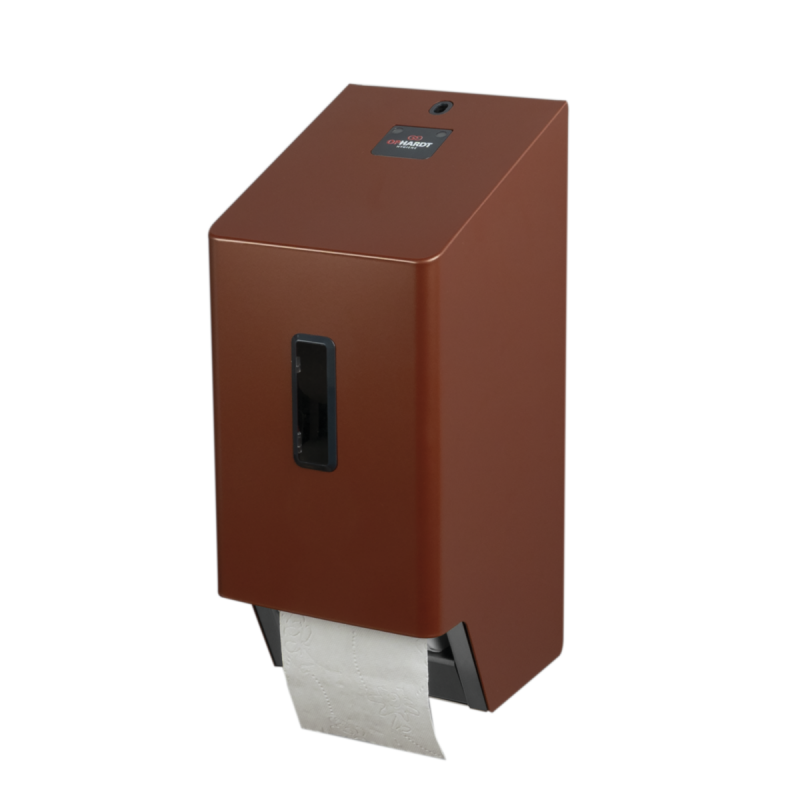

SanTRAL® Plus TTU 2 P Copper Rose (CR) SMART, toilet paper dispenser for 2 standard toilet paper rolls, stainless steel, copper-metallic powder coated, lockable, automatic reloading of second roll when first roll is emptied, with window for fill level control, sloped-top housing prevents placement of unwanted objects on dispenser

Data transmission via WiFi with visualization by KANARY or third party platforms, for fully automatic detection of the fill level via sensor technology, integrated LEDs to indicate a critical battery and fill level, over-the-air configuration and firmware update, NFC to read out data and to configure via smartphone.

Quantity (Pcs.) / pallet:	136
Product Sub-Categories:	Toilet paper dispenser
Housing:	Stainless steel, copper-metallic powder-coated (RAL 8029 Pearl Copper)
Material:	Stainless steel
Filling Volume (Toilet Paper):	2 standard rolls (max. roll diameter 120 mm)
Smart Technology:	Smart
Lockable:	Yes
Lock:	SanTRAL vandalism-proof lock, plastic
Battery:	4x AA alkaline batteries, 1.5 V, exchangeable, non-rechargeable
Electronic:	Board with sensors, WiFi module 802.11 b/g/n (Frequency range: 2400 MHz - 2483.5 MHz; WPA and WPA2) and NFC Chip (Frequency: 13.56 MHz)
Firmware:	Updates and configuration “over-the-air” (OTA)
Voltage:	6 Volt
Compliancy:	RoHS
CE certification:	EN 300328 Integration verification WLAN, EN 300330 Integration verification NFC, ETSI EN 62311.2008 EMF, ETSI EN 301489-1 EMV
Software:	Dispenser with integrated Smart Module enables automatic fill level detection and connection to KANARY as well as third-party platforms
Mounting:	Wall mounting with 4 screws and wall plugs
Cleaning Method:	manual wipe disinfection, not dishwashersafe, not autoclavable
Warranty:	5 years
