Art. No. 4402633
IMS E P/24 hi-vis orange
Smart Euro bottle dispensers for soaps and hand disinfectants
- Description
- Documents
- Technical Drawings
- Accessories
- Spare parts

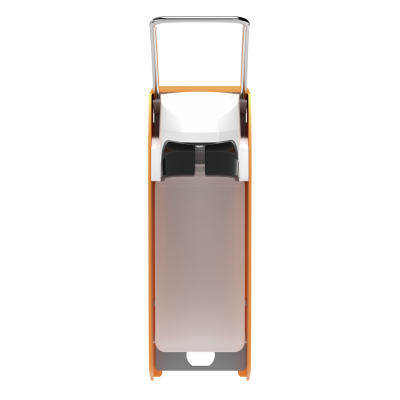

ingo-man® smart IMS E P/24, soap and disinfectant dispenser, for 500 ml standard Euro bottles, short operating stainless steel lever, hi-vis orange powder coated aluminium housing, exchangeable stainless steel pump 24 with bent suction tube, different dosage adjustments (approx. 0.75/ 1.0/ 1.2/ 1.5 ml/stroke), PET Euro bottle incl., with intelligent face shield that enables WiFi communication with KANARY, the unit automatically records hand hygiene events (dosage, timestamp, dispenser ID) and sends that data to a central database for evaluation, gives immediate feedback on performance through an integrated LED, A separate integrated LED informs users when the battery is low
- with lithium metal battery type ER 26500
- Transport Code: 3091
- Hazardous material class: 9
| Brand: | ingo-man® smart |
|---|---|
| Quantity / Pallet EU: | 224 |
| Quantity / carton: | 1 |
| Product Type: | Hygiene dispenser |
| Dispenser type: | Euro bottle dispenser |
| Operating type: | short operating stainless steel lever |
| Housing: | Aluminium, hi-vis orange powder-coated (RAL 2007) |
| Face shield: | Plastic, white |
| Filling volume (ml): | 500 ml |
| Material: | Aluminium |
| Dosing pump: | long-life stainless steel pump with bent suction tube |
| Dosage quantity: | 0.75 / 1.0 / 1.2 / 1.5 ml/stroke |
| Filling good: | Disinfectant, Liquid soaps |
| Smart function: | Smart |
| Batteries: | Lithium battery ER26500 (Transport Code: 3091; Hazardous material class: 9), 3.6 V, 9.0 Ah, exchangeable, non-rechargeable, confected battery with cable and plug can be reordered |
| Electronic: | Board with sensors, WiFi module 802.11 b/g/n (Frequency range: 2400 MHz - 2483.5 MHz; WPA and WPA2) and NFC Chip (Frequency: 13.56 MHz) |
| Firmware: | Updates and configuration “over-the-air” (OTA) |
| Software: | Dispenser with integrated Smart Module enables automatic fill level detection and connection to KANARY as well as third-party platforms |
| Wall bracket: | Standard ingo-man® plastic wall plate |
| Mounting: | Wall mounting with 4 screws and wall plugs |
| Cleaning: | manual wipe disinfection, not dishwashersafe, not autoclavable |
